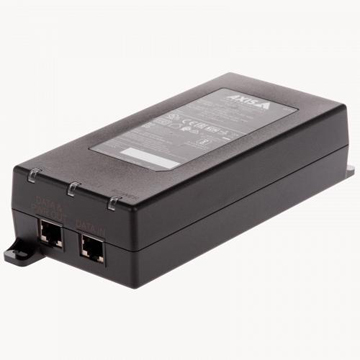

AXIS 90W Midspan AC/DC 02209-001
When mains power is not an option, 90W
24 V AC and 20-26.4 V DC input
Up to IEEE 802.3bt (90 W) output
Ideal for retrofitting PTZ
Compatible with Axis PoE devices
Flexible installation

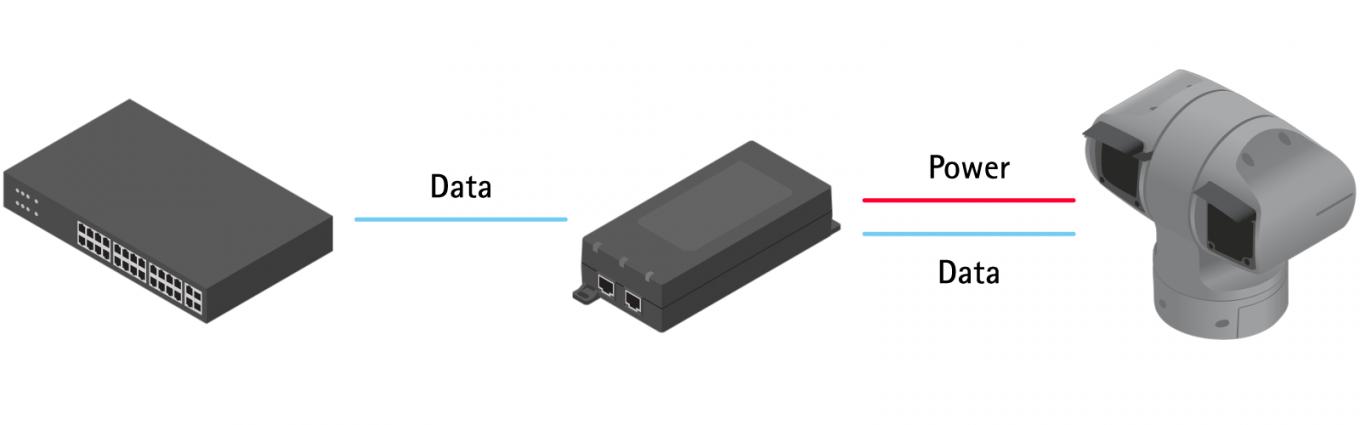

AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.

24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.

20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
Compatible products
AXIS 90 W Midspan AC/DC AR, AU, BR, CN, EU, IN, JP, KR, UK, US 02209-001
AXIS 90 W Midspan AC/DC, 10 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 02209-021
