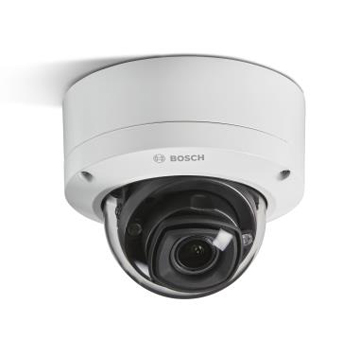

BOSCH NDE-3503-AL Fixed dome 5MP Camera （DISCONTINUED）
1080p and 5MP resolutions
Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
Fully configurable H.265 multi-streaming
Easy to install with zoom/focus lens
Built-in IR illuminator with 30 m (98 ft) viewing distance
NDE-3502-AL Fixed dome 2MP HDR 3.2-10mm IP66  IK10 IR Fixed dome camera 2MP resolution; Essential Video
Analytics; 3.2-10 mm lens; outdoor vandal resistant; integrated IR illuminator
Order number NDE-3502-AL | F.01U.386.158 F.01U.360.360
NDE-3502-AL-G Fixed dome 2MP 3.2-10mm IP66 IK10 IR 4S Kit including NDE-3502-AL fixed dome camera and
NDA-3080-4S adapter plate
Order number NDE-3502-AL-G | F.01U.387.978
NDE-3503-AL Fixed dome 5MP HDR 3.2-10mm IP66 IK10 IR Fixed dome camera 5MP resolution; Essential Video
Analytics; 3.2-10 mm lens; outdoor vandal resistant; integrated IR illuminator
Order number NDE-3503-AL | F.01U.386.159 F.01U.360.359
NDE-3502-AL-P Fixed dome 2MP HDR 3.2-10mm IP66 IK10 IR Fixed dome camera 2MP resolution; Essential Video
Analytics; 3.2-10 mm lens; outdoor vandal resistant; integrated IR illuminator
Order number NDE-3502-AL-P | F.01U.396.876
NDE-3503-AL-P Fixed dome 5MP HDR 3.2-10mm IP66 IK10 IR Fixed dome camera 5MP resolution; Essential Video
Analytics; 3.2-10 mm lens; outdoor vandal resistant; integrated IR illuminator
Order number NDE-3503-AL-P | F.01U.396.877
Accessories
NDA-3080-CND Conduit adapter 3000i outdoor camera M20 Conduit adapter for NDE-3000 outdoor camera
Order number NDA-3080-CND | F.01U.396.506 F.01U.379.489
NDA-3081-CND Conduit adapter 3000i outdoor camera M25 Conduit adapter for 3000i outdoor camera series
Order number NDA-3081-CND | F.01U.396.508 F.01U.382.429
NDA-3080-PIP Pendant interface plate NDE-3000 Pendant interface plate for NDE-3000 dome
Order number NDA-3080-PIP | F.01U.396.505 F.01U.379.474
NDA-3080-4S 4S adapter plate NDE-3000 4S adapter plate for NDE-3000 dome camera
Order number NDA-3080-4S | F.01U.396.445 F.01U.379.488
NDA-U-CMT Corner mount adapter Corner mount adapter

Order number NDA-U-CMT | F.01U.324.946
NDA-U-PMAL Pole mount adapter large Universal pole mount adapter, white; large
Order number NDA-U-PMAL | F.01U.324.944
NDA-U-PMAS Pole mount adapter small Pole mount adapter small Universal pole mount adapter, white; small.
Order number NDA-U-PMAS | F.01U.324.943
NDA-U-PMT Pendant pipe mount, 12" (31cm) Universal pipe mount for dome cameras, 31 cm, white
Order number NDA-U-PMT | F.01U.324.940
NDA-U-PMTE Pendant pipe extension, 20" (50cm) Extension for universal pipe mount, 50 cm, white
Order number NDA-U-PMTE | F.01U.324.941
NDA-U-WMP Wall mount plate Back plate for universal wall mount, corner mount and pole mount, white, IP66
Order number NDA-U-WMP | F.01U.324.950
NDA-U-WMT Pendant wall mount Universal wall mount for dome cameras, white
Order number NDA-U-WMT | F.01U.324.939
NDA-U-PMTG Pendant pipe mount, gang box Universal pipe mount, compatible with gang box
installation for fixed dome cameras only, white
Order number NDA-U-PMTG | F.01U.358.359
NDA-U-WMTG Pendant wall mount, gang box Universal wall mount, compatible with gang box
installation for fixed dome cameras only, white
Order number NDA-U-WMTG | F.01U.358.358
NDA-U-PSMB Pendant wall/ceiling mount SMB Surface mount box (SMB) for wall mount or pipe mount.
Order number NDA-U-PSMB | F.01U.324.942
NPD-5001-POE Midspan, 15W, single port, AC in Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 1-port Weight: 200 g (0.44 lb)
Order number NPD-5001-POE | F.01U.305.288
NPD-5004-POE Midspan, 4 port x 15W, AC in Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 4-ports Weight: 620 g (1.4 lb)
Order number NPD-5004-POE | F.01U.305.289
UPA-1220-50 Power supply, 220VAC 50Hz, 12VDC 1A out Power supply for camera. 110-240 VAC, 50/60 Hz In; 12
VDC, 1 A Out; regulated. Input connector: 2-prong, European Europlug standard (4 mm / 19 mm).
Order number UPA-1220-50 | F.01U.076.158
UPA-1220-60 Power supply, 120VAC 60Hz,12VDC 1A out Power supply for camera. 100-240 VAC, 50/60 Hz In; 12
VDC, 1 A Out; regulated. Input connector: 2-prong, North American standard (nonpolarized).
Order number UPA-1220-60 | F.01U.076.155
Services EWE-3000IO -IW 12mths wrty ext 3000i series outdoor
12 months warranty extension
Order number EWE-3000IO -IW | F.01U.382.247
Key Specifications
Built-in IR (ft) 98 ft
Built-in IR (m) 30 m
Frame rate (fps) 25 – 30 fps
Impact protection (EN 50102) IK10
IP rating IP66
Lens focal length (mm) 3.20 – 10 mm
Minimum illumination in color (lx) 0.3790 lx
Minimum illumination in monochrome (lx) 0.0320 lx
Operating temperature (°C) -30 – 50 °C
Operating temperature (°F) -22 – 122 °F
Resolution 1920 x 1080
Sensor type 1/2.9 inch CMOS
Video compression H.264 (ISO/IEC 14496-10)
