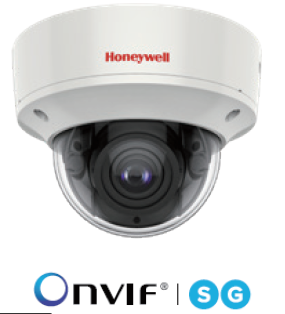

HVCD-4500IVKS 4MP IR Dome Network Camera
Honeywell HVCD-4500IVKS IR Dome Network Camera, it combines with the
world-class imaging technology and cameras technology with innovative IP
networking technology. It provides users with 4MP high quality images.
HVCD-4500IVKS HD IR Dome Camera Network Camera is the ideal solution for advanced
surveillance with its high-quality image quality.
Built-in 2.8-12mm MFZ lens, it allows users to adjust the lens to the best angle
according to the on-site monitoring environment.
HVCD-4500IVKS has built-in IR. The maximum IR distance is up to 60 meters.
It provides users with clear black and white images in low light or all black
environments.
The HVCD-4500IVKS supports PoE Ethernet (IEEE802.3af), which can directly
supply power to the network camera through the network cable, that no power
adapter is needed, helping users to save installation cost effectively. To enhance
the installation flexibility of the HVCD-4500IVKS, the network camera also
supports DC12V and AC24V power supply.
Honeywell HVCD-4500IVKS supports 4MP HD video, H.265 efficient compression,
POE Ethernet power supply and ONVIF network interface. It also provides FHD
real-time video even in a limited bandwidth environment. Dome appearance design
makes it the ideal choice for all kinds of security, monitoring application, and
widely used in various indoor and outdoor venues, such as road, airports, schools,
shopping malls, hotels, and bank branches, enterprises and organs, retail stores,
building corridor, etc.
FEATURES
? 1/3" Progressive Scan CMOS
? Support 2688 x 1520@25fps
? Support H.265/ H.264/ MJPEG
? True Day/ Night switch
? True WDR
? Up to 60m IR distance
? 2.8 ~ 12mm MFZ lens
? Auto Focus
? Support 128GB on-board storage
? IP67, IK10
? ONVIF
? 12VDC/ 24VAC/ PoE
SPECIFICATION
Model HVCD-4500IVKS
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination
Color: 0.01Lux@F1.6 (AGC ON)
B/W: 0.018Lux@F1.6 (AGC ON), 0Lux (IR on)
Shutter Speed 1/3 ～ 1/100,000s
Day/ Night IR Cut Filter
S/N Ratio 54dB
WDR 120dB
Focal Length 2.8 ~ 12mm, MFZ
FOV Horizontal: 104° ~ 29° , vertical: 55° ~ 17° (wide-tele)
Aperture F1.6
IR Range Up to 60m
IR Wavelength 850nm
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG (Sub stream only)
Resolution
Main Stream: 50Hz: 2688 × 1520@25fps; 60Hz: 2688 × 1520@30fps
Sub Stream: 50Hz: 640 × 480@25fps; 60Hz: 640 × 480@30fps
Third Stream: 50Hz: 1280 × 720@25fps; 60Hz: 1280 × 720@30fps
H.265 Type Main Profile
H.264 Type High Profile/ Main Profile/ Baseline Profile
Video Bit Rate 32Kbps ~ 16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32~192Kbps(MP2L2)
Audio & Video Function
Image Enhancement BLC, 3D DNR
Image Settings Image rotation, saturation, brightness, contrast, sharpness, corridor mode
ROI Support 1 region for main stream or sub stream
Video Analysis
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object
Removal Detection, Unattended Baggage Detection
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS,
IPv6, UDP, Bonjour
ONVIF ONVIF(Profile S, G)
Web Browser IE8 or above
Simultaneous Live View 6 channels
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, Storage full, Storage error
Interface
Network 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 x Alarm in, 1 x Alarm out (Terminal block)
Video Output 1 x BNC
Audio Output 1 x Audio input, 1 x Audio output, mono sound
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Model HVCD-4500IVKS
General
Operating Temperature -30° C ～ 60° C
Operating Humidity ≤95% (non-condensing)
Protection Level IP67, IK10
Power Supply 12VDC/24VAC/ PoE (802.3af, Class 3)
Power Consumption Max. 12W
Material Bubble: plastic; Body: Metal

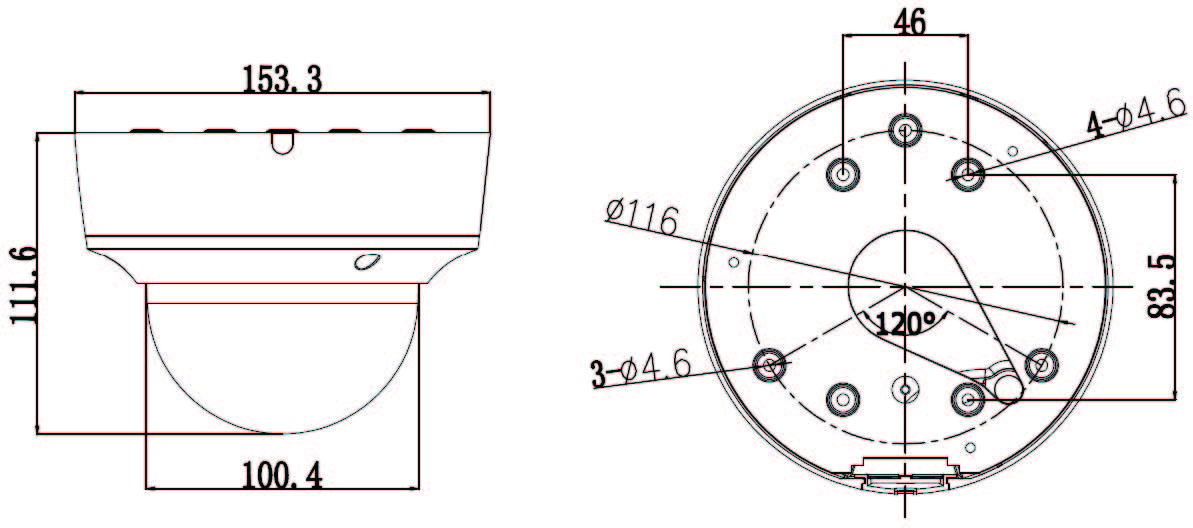

Dimensions Φ 153.3 × 111.6 mm
Weight 1.3kg
Note: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HVCD-4500IVKS
4MP IR Dome Network Camera, 1/3" Progressive Scan CMOS, H.265/ H.264/
MJPEG, TDN, 60m IR, 120dB WDR, 2688 × 1520@25fps, IVA, support 128GB
on-board storage, ONVIF, 1 x Alarm in, 1 x Alarm out, 1 x Audio input, 1 x Audio
output, IP67, IK10, 12VDC/ 24VAC/ PoE
