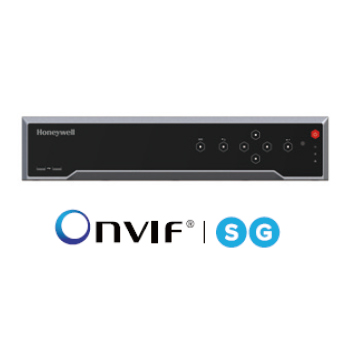

HVSN-8232R Honeywell 32CH 12MP HD Network Video Recorder
Honeywell launches a new 32CH 12MP HD network video recorder HVSN-8232R., which
is an easy to use network recording solution designed for small-scale surveillance.
Support 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P resolution, H.265+/H.265/H.264 video compression, 4K HDMI & 1080P
VGA output and compatibility with Spring series IP cameras, this NVR series optimizes recording quality to provide outstanding
video performance at an economical price.
The user-friendly operation interface allows users to live view, record, playback, back up and remotely control the system
simultaneously. Embedded with 8 SATA interface to support 10TB HDD each slot, the maximum storage capacity of the
HVSN-8232R is up to 80TB.
In addition to basic functions of video motion detection, video loss, video tampering and so on, HVSN-8232R also supports advanced
functions such as intrusion detection, line crossing, area detection, object left/lost and face detection, which can effectively improve
efficiency of daily management and usage. It can automatically diagnose all channels video quality, including noise, partial color,
virtual focus, overexposure, scene change and so on, and find image exception in time.
HVSN-8232R uses advanced hard disk RAID0/1/5/6/10 storage mechanism, can automatically and instantly copy backup data,
can effectively prevent disk errors and non-copyable reading errors. This advanced data protection can maximize data integrity,
reduce video loss caused by accident.

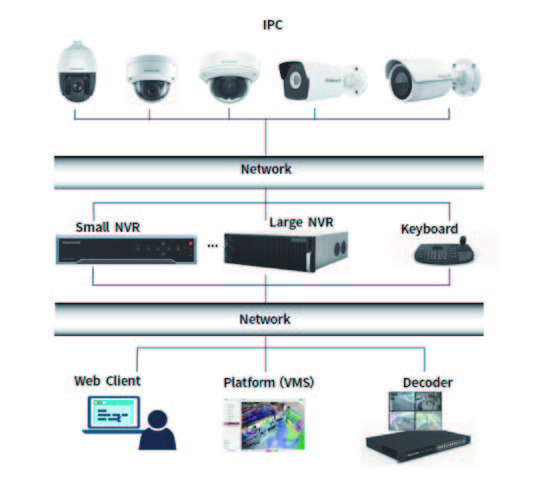

HVSN-8232R can be used as NVR locally and independently. When multiple NVR access to VMS, which is used for centralized
management of NVR, it can also build a large network video surveillance system. It’s very convenient for real-time browsing, video
playback, configuration, PTZ control, video switching and other functions for administrator.
Market Opportunity
As a full HD network monitoring system, HVSN-8232R can provide 4K HD real-time video, which is an ideal choice for building HD
network monitoring platform. Based on stable operation of 24/7, HVSN-8232R can be fully satisfied with using requirements of
office buildings, hotels, hospitals, schools, factories, shopping malls and other medium-sized application places.
FEATURE
32CH 12MP HD full real-time network video access
Network Bandwidth Access 320Mbps
12MP/8MP/6MP/5MP/4MP/3MP/ 1080P/720P resolution
H.265+/H.265/H.264/MPEG4
16CH playback ability, 4CH 4K or 16CH 1080P local decode ability
8SATA & 1eSATA HDD interface:10TB storage capacity for each slot
Raid0, Raid1, Raid5, Raid6, Raid10 array type
Support video motion detection, video loss, video tampering
2CH HDMI(4K/1080P) and 2CH VGA(2K/1080P) sync output
Two-way talkback, 1CH Audio input/2CH Audio output
3 USB ports, support video export and backup
16CH alarm input/4CH alarm output, 1 RS232/485
Support hard disk grouping and quota management, different channels can set different video
strategy
Support Onvif access
SPECIFICATION
MODEL HVSN-8232R
SYSTEM
Main Processor Embedded processor
Operation System Embedded LINUX
VIDEO
Video Input 32CH
Network Bandwidth
Access
320Mbps (200Mbps when RAID)
Video Compression H.265+/ H.265/ H.264/ MPEG4
Video Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/720p/VGA/4CIF/CIF
Video Bit Rate 16Kbps64Mbps
Image Display 1/4/6/8/9/16
Motion Detection Support, surveyed area can be set in every screen and multi-level sensitivity adjustable
Privacy Mask Support 4 zones
AUDIO
Audio Compression G.711, G722.1
Two-way Talkback Two-way talkback, 1CH RCA interface
VIDEO RECORDING AND PLAYBACK
Video Frame Rate 130fps
Video Mode Manual/external alarm/MD/timing/smart analysis alarm
Playback Ability 16CH playback ability, 1CH 4K or 4CH 1080P local decode ability
Playback Mode Instant playback, local video, local image, external file playback
Search Mode Time/date, calendar, channel search, event search, (NFR, regular video, motion detection video, alarm video, intelligent detection video)
Video Playback
Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast play(1256X), slow play(11/32X), frame
play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise playback
STORAGE AND BACKUP
Storage Interface 8 SATA
HDD Capacity Single max.10TB
Array Type Raid0, Raid1, Raid5, Raid6, Raid10
Disk Grouping According video channels to set HDD quantity
Disk Quota According video channels to set HDD storage capacity
Backup Method 1 eSATA, USB mobile hard disk, U disk, network backup
ANR Support Mid Spring series IPC (with TF card) NFR
FUNCTION
Network Protocol HTTPS, HTTP, TCP/IP, UDP, RTP, RTSP, RTCP, DHCP, DNS, DDNS, PPPoE, NTP, UPnP, SMTP, SNMP, SADP, IPv4/v6, iSCSI, NFS
Integration Protocol ONVIF (Profile S, G)
Protocol Port ONVIF/RTSP/HTTP/HTTPS port customized
Browser IE8 or above
IPC Timing Manual/auto/timing/reconnect timing to IPC timing
Manage IPC Modify IPC parameters, IPC upgrade
Alarm Linkage Send email, audible warning（buzzer), display on monitor, upload to center, record, snapshot, preview, PTZ
EXT INTERFACE
Network Interface 2 RJ45 (10/100M/1000M)
Alarm Input 16CH
Alarm Output 4CH
RS485 1 RS232, RS485
USB Front panel:2 USB; Rear panel: 1 USB
Audio 1CH Audio input /2CH Audio output, RCA interface
HDMI interface 2 HDMI, support 4K & 1080P display
VGA interface 2 VGA, support 2K & 1080P display
GENERAL
Power Supply AC100240V
Power Consumption（Max.）30W /200W (with HDD)
Operation
Temperature/Humidity 10° C ~ 55° C/ 10 ﹪ 90 ﹪
Dimensions(mm) 445 (W)x90 (H)x470 w(D)mm
Weight/PCS(g) 8Kg (without HDD)
*Note: Honeywell reserves the right, without notification to make changes / upgrade in product design and/or specifications.
HVSN-8232R 32CH 12MP HD network video recorder, H.265+/H.265/H.264, 12MP/8MP/ 6MP/5MP/4MP/3MP/1080P/720P resolution, HDMI/
VGA local video output, 8 SATA HDD port, 3 USB, AC100240V
