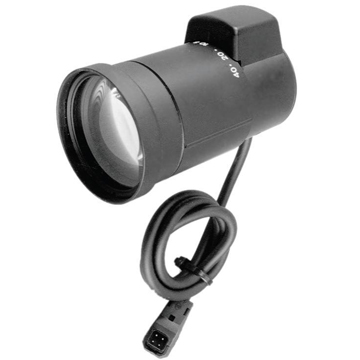

13VD3-8mm Pelco 13VD Series Varifocal Lens
1/3-INCH FORMAT, AUTO IRIS (DIRECT DRIVE)
13VD1-3
13VD2.5-6
13VD2.8-12
13VD3-8
13VD5-40
13VD5-50
13VD5.5-82.5
13VD15-50
Product Features
CS Mount
Spot Filter
For Use with 1/3-Inch Format Cameras
Auto Iris, Manual Focus, and Zoom
High Resolution Power in Compact Body
Pelco’s 13VD Series
1/3-inch varifocal lenses offer versatile and  flexible packages in one basic lens. Each auto iris lens in this series  covers a specific range of focal lengths. Adjust these lenses to get
the exact field of view instead of “almost the right view.”  Appropriate for indoor and outdoor lighting situations, the
13VD Series lenses will fit all 1/3-inch CS-mount cameras
requiring DC-drive auto iris lenses. In addition, all auto iris lenses include a spot filter. Lenses in the
13VD Series come with astandard square 4-pin plug installed for ease of installation and convenience.
Lenses in this series are available in 2.1X, 2.4X, 2.7X, 3.34X, 4.3X,  8X, 10X, and 15X zoom with varying focal lengths.
Pelco’s VD series lenses are intraspot-type lenses, which optimize  the dynamic range of the iris. Maximum apertures of no less than
f/1.8 to a minimum aperture of f/360 are typical of all these lenses.  This allows for excellent performance characteristics across a wide
range of lighting conditions.

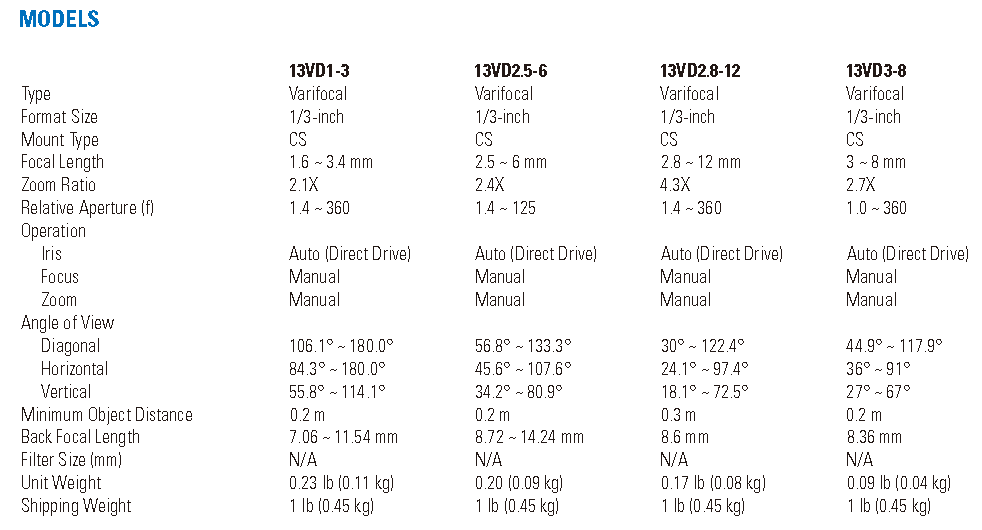

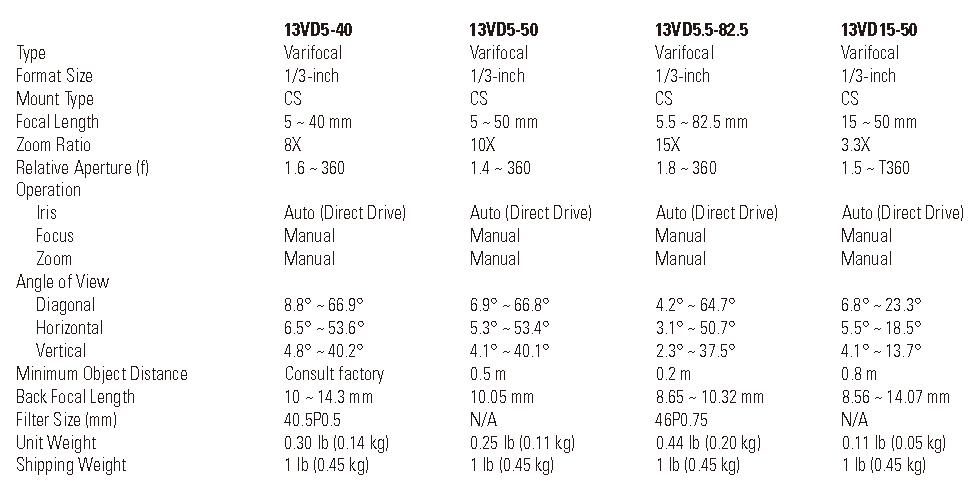

Select the model lens that best suits your needs from the Technical
Specifications section of this product specification sheet.
