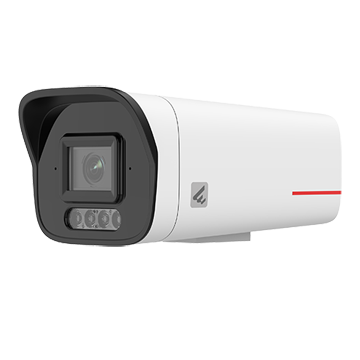

D2152-10-IR 5MP infrared network camera
Vehicle Mainland China plate recognition, license plate enhancement, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics, off-duty detection
Target target detection, support;, target attribute detection, target recognition
Human body detection
Machines are not humans Machines are not humans detection
Computing power 1 TOPS
Resolution 5MP 2880(H)*1620(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.6, AGC ON), black and white: 0.0025Lux (F1.6, AGC ON), 0Lux (infrared on)
Lens focal length 2.8-12mm
Lens viewing angle: 32°(T end)~95°(W end); vertical: 18°(T end)~52°(W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.265
Video frame rate 5MP 20fps, resolution less than 5MP 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
1 drag N function supported
RS485 interface supported
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 12.2W, Typical power consumption: 3.2W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Equipment anti-corrosion Class C anti-corrosion
