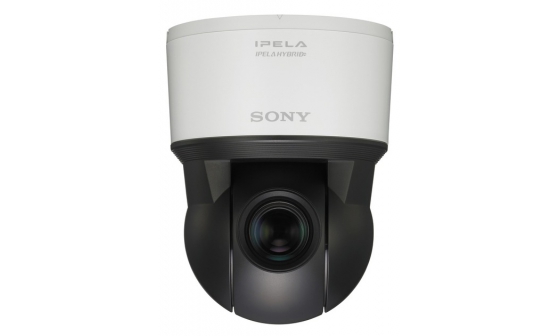

SNC-ZP550 Sony 720p/30 fps PTZ camera

Specifications
Camera
Image Sensor1/4-type "Exmor" CMOS sensor
Number of Effective PixelsApprox. 1.43 Megapixel
Signal SystemNTSC color system / PAL color system (switchable)
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color: 1.00 lx (F1.35, shutter 1/30 s, AGC ON [IP])
B/W: 0.10 lx (F1.35, shutter 1/30 s, AGC ON [IP])
Minimum Illumination (30 IRE)Color: 0.7 lx (F1.35, AGC ON, 1/30 s)
B/W: 0.07 lx (F1.35, AGC ON, 1/30 s)
Dynamic Range86 dB (theoretical) by DynaView Technology
GainAuto/Manual (-3 dB to 28 dB)
Shutter Speed1/1 s to 1/10000 s
Exposure ControlFull auto, Shutter priority, Iris priority, Manual
White BalanceAuto, ATW, Advanced Auto, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
LensAuto-focus zoom lens
Powered ZoomYes
Zoom RatioOptical zoom 28x
Digital zoom 12x
Total zoom 336x
Powered FocusYes
Horizontal Viewing Angle55.9° to 2.1°
Focal Lengthf = 3.5 mm to 98 mm
F-NumberF1.35 (Wide) to F3.7 (Tele)
Minimum Object Distance10 mm (Wide) to 1500 mm (Tele)
Pan/Tilt/Rotation Angle (Manual)340° / 105°
Pan Speed300°/s (max.)
Tilt Speed300°/s (max.)
Number of Preset Positions256
Number of Tour Programs5
IR IlluminatorNo
Camera Features
Day/NightTrue D/N
Wide-DDynaView
Tone CorrectionNo
Noise ReductionNR
Vandal ResistantNo
Ingress ProtectionNo
Video
Resolution1280 x 720, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192
Compression FormatH.264, MPEG-4, JPEG
Maximum Frame RateH.264: 30 fps (1280 x 720)
MPEG-4: 30 fps (1280 x 720)
JPEG: 30 fps (1280 x 720)
Multi Streaming CapabilityDual streaming *1
Number of Clients5
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA
Intelligent Motion DetectionYes
System Requirements
Operating SystemMicrosoft Windows XP (32 bit)
Windows Vista (32 bit)
Windows 7 (32 bit/64 bit)
ProcessorIntel Core2 Duo 2 GHz or higher
Memory1 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0, Ver. 9.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver. 4.0 (plug-in free viewer only)
Network
ProtocolsIPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
ONVIF ConformanceProfile S
Wireless NetworkNo
AuthenticationIEEE 802.1X
Interface
Analogue Monitor Output for SetupNo
Analogue Video Output/SLOC PortBNC x1 (Video out: 1.0 Vp-p, 75 Ω, unbalanced, sync negative)
Microphone InputMini jack (monaural)
Line OutputMini jack (monaural), Max output level: 1 Vrms
Network Port10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x2, make contact, break contact
Alarm Outputx1, AC/DC 24 V, 1 A (mechanical relay outputs electrically isolated from the camera)
Card SlotsSD /SDHC card x1
General
Power RequirementsIEEE 802.3at compliant Class 4(PoE+, LAN mode only)*2, AC 24 V
Power Consumption25.0 W max.
Operating Temperature-10℃ to +50℃
+14°F to +122°F
Cold Start Temperature0 ℃ to +50℃
+32°F to +122°F
Storage Temperature-20℃ to +60℃
-4°F to +140°F
Operating Humidity20% to 80%
Storage Humidity20% to 95%
Dimensions (W x H x D) *3φ147.4 mm x 190.9 mm
φ5 7/8 inches x 7 5/8 inches
MassApprox. 1.7 kg (including ceiling bracket)
Approx. 3 lb 12 oz (including ceiling bracket)
Safety RegulationsJATE technical standard (LAN), UL2044, IEC60950-1 (CB), VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
Supplied AccessoriesCD-ROM (User's Guide, and supplied programs) (1)
Installation Manual (1 set)
Ceiling bracket (1)
Screws (2)
Template (1)
24V AC connector (1)
I/O connector (1)
Notes
*1Dual streaming is not available when an analogue video signal is output from the SLOC port.
*2PoE+ is available when the camera is connected to HPoE-compatible equipment via an Ethernet cable.
*3The values for dimensions are approximate.
