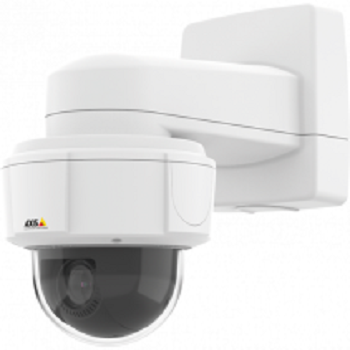

AXIS M5525-E 01145-009 PTZ Network Camera

Brand:AXIS

Model:AXIS M5525-E

Lens Focal length 4.7-47mm

Detail

AXIS M5525-E 01145-009 PTZ Network Camera

Technical specifications
Models: AXIS M5525-E 60Hz / AXIS M5525-E 50Hz
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder -
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.45 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot)  Yes
Operating temperature -20 to 50 °C
Outdoor Ready  Yes
Vandal rating IK09
IP rating IP66
Designed for repaint
Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 30/25
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 4.7 - 47 mm
Horizontal field of view 61.8 - 6.7 °
Vertical field of view 37.2-3.8 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range 0 to -90
Guard tour limited guard tour
Optical zoom 10
Digital zoom 12
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
System Integration
Audio detection
Yes
Active tampering –
Alarm inputs/outputs 4
Network
PoE Class 3
Security
Signed firmware –
Secure boot –
TPM –
