Brand:AXIS
Model:AXIS M3066-V
Lens Focal length 2.4 mm
Horizontal field of view 131 °
Vertical field of view 97 °

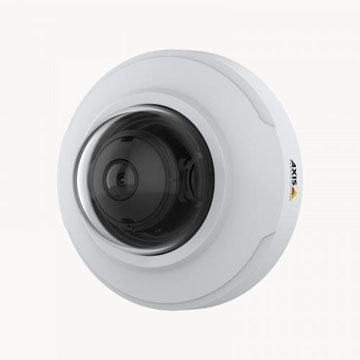

AXIS M3066-V Network Camera
4 MP fixed mini dome with HDMI
4 MP video quality
WDR and Day/night functionality
HDMI output and Edge storage
Environmentally friendly
Zipstream supporting H.264 and H.265
AXIS M3015 Network Camera
AXIS M3016 Network Camera
AXIS M3057-PLVE Mk II Network Camera
AXIS M3058-PLVE Network Camera
AXIS M3064-V Network Camera
AXIS M3065-V Network Camera
AXIS M3066-V Network Camera
AXIS M3067-P Network Camera
AXIS M3068-P Network Camera
AXIS M3075-V Network Camera
AXIS M3077-PLVE Network Camera
Technical specifications
Models: AXIS M3066-V
Camera
Image sensor CMOS
Image sensor size 1/2.5
Sensor size in megapixel 4.0
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.23 lux
Min illumination/ light sensitivity (B/W) 0.05 lux
Video
Max video resolution 2304x1728
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 2.4 mm
Horizontal field of view 131 °
Vertical field of view 97 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 1
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP42
Designed for repaint
Yes
Sustainability BFR/CFR free, PVC free
Discontinued products
The following compatible products have been discontinued.
AXIS Surveillance microSDXC? Card 256 GB
AXIS T8123-E Outdoor Midspan 30 W 1-port
AXIS T8133 Midspan 30 W 1-port
AXIS T81B22 DC 30 W Midspan 1-port
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M3066-V AR, AU, BR, CN, EU, JP, KR, UK, US 01708-001
AXIS M3066-V IN 01708-113
