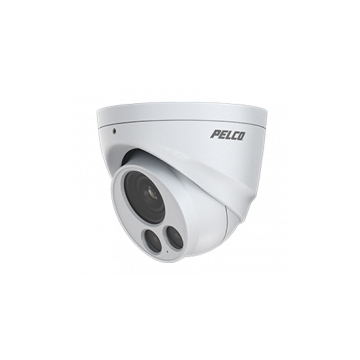

ITV529-1ERS Pelco 5MP, 3-9MM, IR Environmental Turret Camera

Product Features
Excellent low light performance
True Wide Dynamic Range
20 FPS @ 5 MP
Built-in IR illumination up to 30 M
Remote zoom and focus varifocal lens
H.265 and H.264 encoding with Pelco Smart Compression
IP66 for environmental ruggedness
Built-in MicroSD / SDHC / SDXC Card Slot for On-board Storage, 256 GB tested
Built-in Microphone

Models
Resolution Model Number Lens Description
5 MP ITV529-1ERS 3 ~ 9 mm Sarix Value Environmental IR
Turret
Compatible Accessories—Mounting Kits
SRXV-WMS L-shaped Wall Bracket
IJTV-AP Electrical Box Adapter Plate
IJTFV-PA Pendant Mounting Adapter
IMJTV-JB Environmental Conduit Box
SRXV-WMP Pendant Wall Mount
IMV-WMJB Wall Mount Junction Box
SRXV-PP Pendant Extension Pipe
SRXV-PCF Pendant Ceiling Flange
SRXV-CM Corner Mount
SRXV-PLM Pole Mount
PoE Power Supplies
POE130-XT Single-port PoE Gigabit extender powered by POE190-BT injector
POE130-AT (US or EU) Single-port PoE+ midspan
POE430-AT (US or EU) 4-port, 30W per port PoEmidspan
POE2436-AT (US or EU) 24-port, 36W PoE midspan

Technical Specifications
Camera Features
Item Description
Image Sensor 1/2.7" Progressive CMOS
Maximum Resolution 2560x1920 (5MP)
Lens Type Motorized, Vari-focal, Remote Focus
Focal Length f = 3.4 ~ 9.4 mm
Aperture F1.4 ~ F2.8
Iris Type Fixed iris
Field of View 30° ~ 88° (Horizontal)
23° ~ 65° (Vertical)
38° ~ 115°(Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
Day/Night Yes with removable IR cut filter
IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
Minimum Illumination 0.2 lux Color
Pan Range 360°
Tilt Range 70°
Rotation Range 360°
Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
Storage Seamless Recording to MicroSD/SDHC/SDXC card (256 GB tested) and
recording to network-attached storage (NAS)
