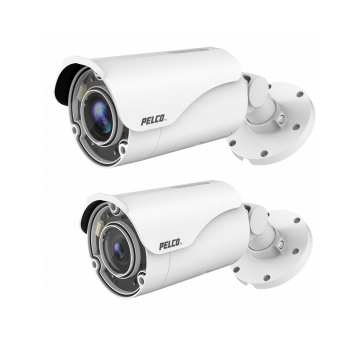

IBP335-1ER Pelco IBP Series Environmental Bullets
Product Features
? H.265, H.264 Main, High, MJPEG video encoding
? Up to 5 MP resolution at 30 images per second
? Up to 60 images per second (ips) at 4 MP for 5MP cameras
? Autofocus motorized remote zoom lens
? IR illumination up to 50/60/80 meters (for different lenses)
? Operating temperature up to 60°C (140°F)
? Micro SDHC and SDXC card 2 TB addressable, 128 GB testable
? Pelco Pro Analytics Suite including Adaptive Motion, ObjectCounting, Motion Detection, Camera Sabotage
? 24 VAC, 12 VDC, IEEE802.at (PoE+)
? Pelco Smart Compression Technology
? Vandal resistant to IK10, IP66/67 ingress protection
? Compatible with Pelco & third-party video management systems
? ONVIF Profile S, Profile G, and Profile T conformant
? Full 3-year warranty
CAMERA
Imaging Device 1/2.8-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
5 MP 2592 x 1944
3 MP 2048 X 1536
2 MP 1920 x 1080
1 MP 1280 x 960
Electronic Shutter Range 1/10,000 sec ~ 1 sec
True Wide Dynamic Range Up to 120 dB, per IEC62676
White Balance Range: 2,000° to 10,000°K; Selectable ATW
(Auto Tracing White Balance), Auto, and
Manual
3D Noise Reduction Yes (ON/OFF selectable)
Signal to Noise Ratio ≥50 dB
MODELS Resolution Lens (Nominal) ModelNumber Description
1 MP 2.8-12 mm IBP131-1ER Sarix Pro Environmental Short-Tele Bullet
2 MP 2.8-12 mm IBP231-1ER Sarix Pro Environmental Short-Tele Bullet
2 MP 9-22 mm IBP232-1ER Sarix Pro Environmental Middle-Tele Bullet
2 MP 5-50 mm IBP235-1ER Sarix Pro Environmental Long-Tele Bullet
3 MP 2.8-12 mm IBP331-1ER Sarix Pro Environmental Short-Tele Bullet
3 MP 5-50 mm IBP335-1ER Sarix Pro Environmental Long-Tele Bullet
5 MP 2.8-12 mm IBP531-1ER Sarix Pro Environment Short-Tele Bullet
5 MP 7-22 mm IBP532-1ER Sarix Pro Environmental Middle-Tele Bullet

OPTIONAL ACCESSORIES
IBP3-PLMT Pole mount usable directly with IBP Series cameras or along with IBP3BBAP-ES
IBP3BBAP-ES Environmental surface mount back box and adapter plate
IBP3BBAP-EI In-ceiling mount
