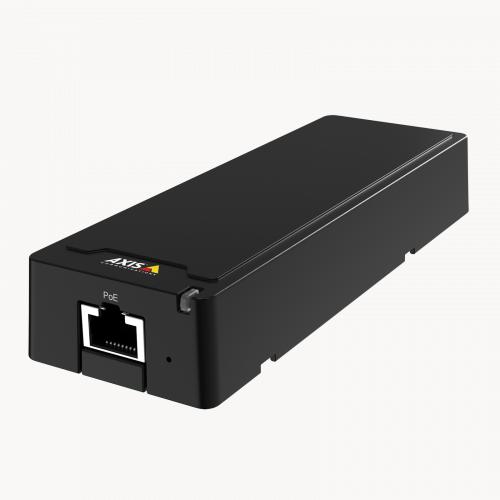

AXIS FA51 Main Unit 02196-001
Single-channel main unit with HDMI output
HDTV 1080p at full frame rate
AXIS Face Detector preinstalled
HDMI output for public viewing monitors
1 configurable input/output port
Compatible with all AXIS FA Sensors Units
Compatible Sensor Units
AXIS FA51 Main Unit Sensor units
AXIS FA1080-E Thermal Sensor Unit
AXIS FA1105 Sensor Unit
AXIS FA1125 Sensor Unit.
AXIS FA3105-L Eyeball Sensor Unit
AXIS FA4090-E Thermal Sensor Unit
AXIS FA4115 Dome Sensor Unit

Technical specifications
Models: AXIS FA51 Main Unit
Camera
Image sensor –
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Thermal sensitivity (NETD) –
Thermal sensor resolution –
Video
Max video resolution 1920x1080
Max frames per second 25 / 30
Day and Night functionality –
Electronic image stabilization –
Multiple color palettes –
Lens
Focal length - mm
Varifocal lens No
Aperture -
Horizontal field of view - °
Vertical field of view - °
Lens mount –
Replaceable lens –
Compression
Zipstream –
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support –
Two-way audio –
System integration
Audio detection –
Active tamperingYes
Alarm inputs/outputs 2
Serial connectors –
AXIS Camera Application Platform Yes
Digital I/O Yes
Network
Power over Ethernet Yes
PoE Class 3
Security
HTTPS encryption Yes
IEEE 802.1X Yes
General
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating IP4X
Power
Power (max) –
Power (average) –
DC input voltage –
