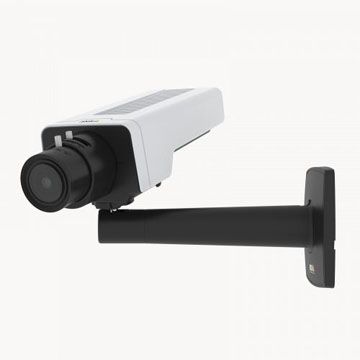

AXIS P1378 Network Camera
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P1378 Barebone AR, AU, BR, CN, EU, JP, KR, UK, US
01810-031
AXIS P1378 Barebone IN
01810-143
AXIS P1378 AR, AU, BR, CN, EU, JP, KR, UK, US
01810-001
AXIS P1378 IN
01810-113
Excellent details in 4K under any circumstances
4K resolution
Lightfinder and Forensic WDR
Signed firmware and secure boot
Electronic image stabilization
Zipstream supporting H.264 and H.265
Technical specifications
DATASHEET (PDF)
Models: AXIS P1378 / AXIS P1378 Barebone
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.15 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 3840x2160
Max frames per second 25/30
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 3.9 - 10 mm
Horizontal field of view 119-45 °
Vertical field of view 62-25 °
Lens mount CS
Replaceable lens Yes
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 3
Wireless –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -10 to 55 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) 10.5 W
Power (average) 6.1 W
DC input voltage 12-28 V
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Fence Guard
For intrusion detection
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS Loitering Guard
For detecting loiterers
AXIS Motion Guard
Smart motion detection
AXIS Object Analytics
AI-based object detection and classification
AXIS Video Motion Detection
Supported
AXIS Audio Spectrum Visualizer
Visual representation of audio
