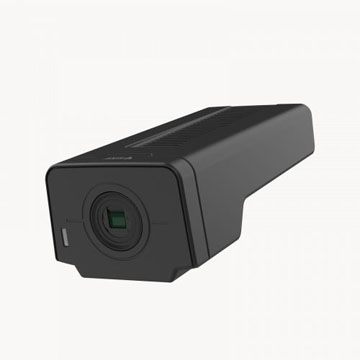

AXIS Q1656-B Box Camera 02164-031
Indoor barebone model in 4 MP
Exceptional images with 1/1.8” sensor
Support for analytics with deep learning
Built-in cybersecurity features
Support for i-CS lens
Ready to customize for specific needs
Technical specifications
DATASHEET (PDF)
Models: AXIS Q1656-B
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Property description Property value
Focal length –
Horizontal field of view –
Vertical field of view –
Lens mount CS
Replaceable lens Yes
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 3
Wireless –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -20 to 55 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) 7.7 W
Power (average) 4.6 W
DC input voltage 10-28 V

Lenses

Lens CS 4-10 mm F0.9 P-Iris

Extreme light sensitivity with precise iris controlRecommended for this product

Lens i-CS 1/1.8" 3.9-10 mm F1.5

Remote zoom and focusRecommended for this product

Lens i-CS 9-50 mm F1.5 8 MP

Remote zoom and focusRecommended for this product
